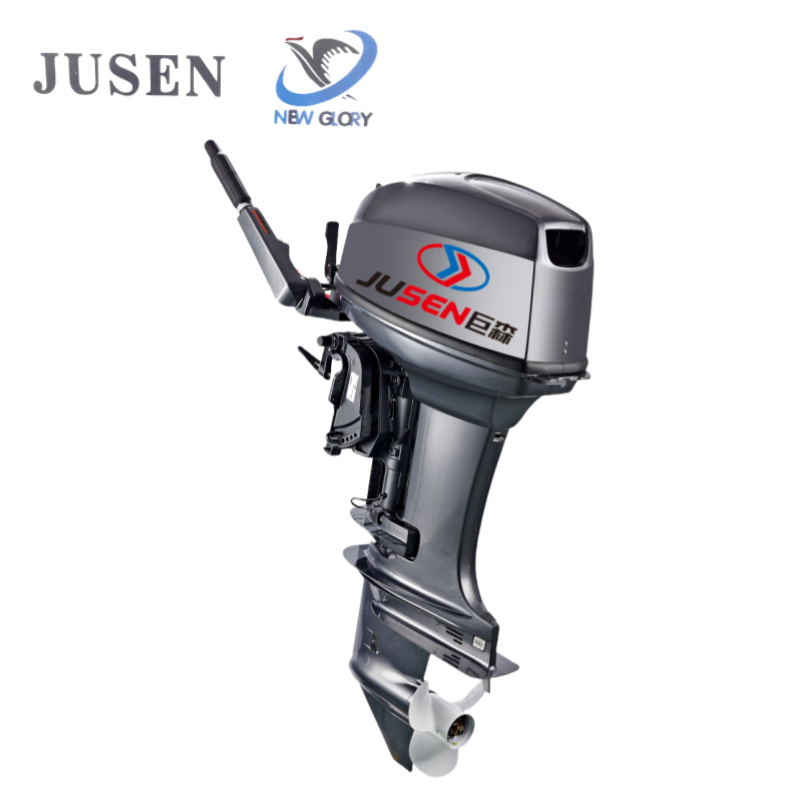

JS-E40X
| 尺寸/Demension | 总体长度/Overall Iength:1490mm 总体宽度/Overall width:402mm 短轴/Overall Height S:1230mm 长轴/Overall Height L:1357mm |
| 重量/Weight | 短轴/S:72Kg 长轴/l:75Kg |
| 全油门工作范围/Full Throttle Operating Range | 4500-5500r/m |
| 最大功率/Maximum Output | 29.4kw |
| 怠速（空挡）/Iding Speed | 1500+50r/m |
| 排量/Displacement | 703cc |
| 缸径*冲程/Bore*Stroke | 80*70mm |
| 点火系统/Ignition System | CDI |
| 火花塞/Spark Plug | N BR7HS-10 |
| 火花塞间隙/Spark Plug Gap | 0.6-0.7mm |
| 控制系统/Control System | 舵杆/Tiller Handle |
| 启动系统/Starting System | 手动/Manual |
| 启动化油器系统/Starting Carburetor System | 阻风门/Choke Valve |
| 齿轮位置/Gear Position | Forward-Neutral-Reverse |
| 齿轮传速比/Gear Transmission Ratio | 2.08(27:13) |
| 倾斜调整系统/Trim and Tilt System | 手动倾斜/Manyal Tilt |
| 燃油推荐/Recommended Fuel | 普通无铅汽油/Unlead Gasoline |
| 机油推荐/Recommended Engine Oil | 2冲程外发动机油/2-Stroke Outboard Motor Oil |
| 燃料油比/Fuel Oil Ratio | 50:1 |
| 齿轮油/Gear Oil | 0.43L |
| 油箱容量/Fuel Tank Capacity | 24L |
| 包装尺寸/Packing Size | 149*87*51（L) 135*85.5*47.5(S) |
| Gross weight /Net weight | 毛重：78KG 净重：65KG |
